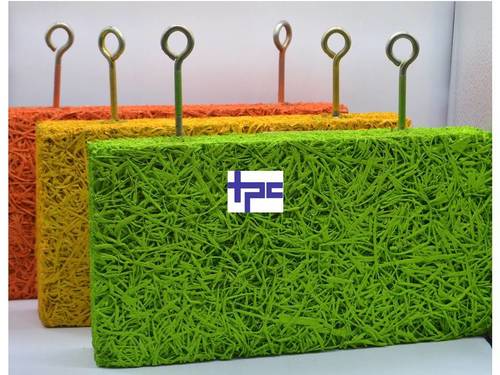

Baffle Panel

Baffle Panel
Baffle Panel
Send Inquiry
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 20
  • Unit of Measure
  • Piece/Pieces,
  • Price Range
  • 55.00 - 220.00 INR
Product Specifications
  • Application
  • Industrial
  • Dimension(L*W*H)
  • Customize Centimeter (cm)
  • Color
  • All color available
  • Density
  • 400-800 Kilogram per cubic meter (kg/m3)
Product Description

We offer Acoustic Hanging Baffle Panel, which is accessible to clients with its exclusive standing arrangement and vivid appearance. This is proffered with an extraordinary sound absorption and is applicable for gymnasium, museum, auditorium and other big & spacious places. Also suited for outdoor applications, it makes a fresh look for all spaces and is known as a highly noise absorbing panel. This suffices as an extremely effective way to control sound reflection and lessens the replication time as well as sound reflections coming from the ceiling. Acoustic Hanging Baffle Panel is demanded for several commercial, industrial and institutional applications such as sports stadium, canteens, walkways etc.

Technical Specification :

Fibre

1mm width Pine wood

Binder

85 Grade Magnesite 200 mesh

Std. Size

1220 x 610mm

Thickness in mm

50

Density in Kg /cuM

400, 450

Edge

Square, Beval

Conforms To

Conform to

IS 3308; EN 13168, BS:1105, DIN:1101

Test

Sound Test

ISO:354-1985 & ASTM 423-90a

Ignitable Test

BS:476

Weather Test

Cycle (B) IS: 9307

Thermal Test

BS: 874-1965

Installation Specification :

The baffle is to hanged from the ceiling with 3mm thick MS 'J' hanger, screw fixed to the ceiling with dash fastners. 1" dia pipe is to be rested on the 'J' curve. Baffles comes with reinforcement system with 2 bolts coming out of the baffle. 3" coupler is to be connected to the bolts. A '?' hook is to be connected to the coupler and complete baffle is to be hanged on 1" dia pipe. All mounting accessory is to be provided by the manufacturer.

Payment Terms  :

  •     Cheque
  •     Rtgs
  •     Bank transfer
  •     Online
Trade Information
  • Supply Ability
  • 1000 Per Month
  • Delivery Time
  • 1 Week
  • Packaging Details
  • carton box
  • Main Domestic Market
  • All India
