Product Code : 07
Price And Quantity
  • Minimum Order Quantity
  • 100 Pcs Square Foot
  • Price Range
  • 120.00 - 525.00 INR
Product Specifications
  • Usage
  • In Wall Paneling for Thermal Insulation
  • Material
  • wood wool board and glasswool
  • Application
  • Cinema Hall, Auditoriums, Indoor Stadium
Product Description

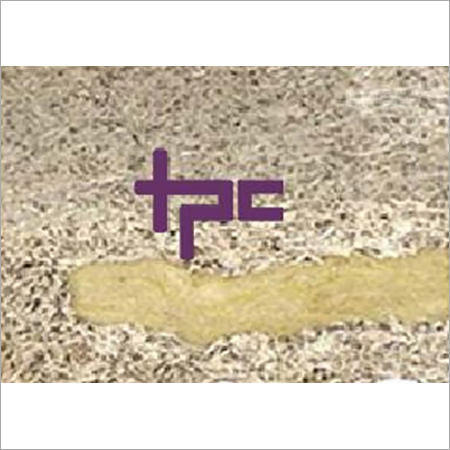

Mineral Wool Sandwich Panel
Fibrol is a sandwich panel which is made up from wood wool board & glass wool.

THERMOFRIZ offer fibrol i.e widely used as a pre-fabricated panel for sound problems like in house near industrial area and in factories which are having sound problem, dg rooms, sound testing rooms etc. Our sound insulation board for sound insulation.

Installation Specifications for Walls

Can be installed on GI metal/ Wooden/ MS frame of 50 x 50mm making a grid of 610 x 610mm c/c. The frame is to be made in proper line after leveling. The panels will be backed with 50mm Polyfibre Acoustic Wadding 1000 GSM inserted inside the grid of 610 x 610mm.

Installation Specifications for Ceiling
Can be installed making grid of size 600 x 600mm c/c of G.I pre coated system using Main T 34 x 24 & Cross T 24 x 24 & wall angles suspended suitably by dash fastners, GI wire & suspension clip & MS cleats. A layer of 50mm Polyfibre Acoustic Wadding 1000 GSM to be used over false ceiling for best results.



Std. Size: 2mt. × 1/2mt.; 1.22m × 0.61m
Other Size: 1.20m × 0.60m; 0.915m × 0.61m; 600mm ×600mm; 595mm × 595mm
Thickness in mm: 25, 40, 50, 75,100
Density in kg/cuM: 400, 600, 800

Technical Specifications

Providing & fixing Thermofriz Acoustic “Glasswool” Panels made from wood fibers mineralized with magnesite composite many thickness and is of multi-colour. Highly recommend for interiors for heat and sound, has excellent sound result as per ISO: 354 -1985 & ASTM 423-90a. Thermofriz wood wool boards are made as per IS: 3308, BS: 1105 & DIN: 1101. These board are not easily ignitable for which we have a fire test done under BS: 476 Part 5, 6, 7. Weather Test Cycle (B) IS: 9307 Part 7- 1979. Thermal Conductivity Test under BS: 874-1965.

Trade Information
  • Payment Terms
  • Others
  • Supply Ability
  • As per requirement Per Day
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Packaging Details
  • Carton Box
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
