Gypsum Finish Panel

Gypsum Finish Panel
Gypsum Finish Panel
Send Inquiry
Product Code : 14
Price And Quantity
  • Minimum Order Quantity
  • 20 Piece
Product Specifications
  • Application
  • Industrial
  • Dimension(L*W*H)
  • Customize Centimeter (cm)
  • Density
  • 400-800 Kilogram per cubic meter (kg/m3)
Product Description

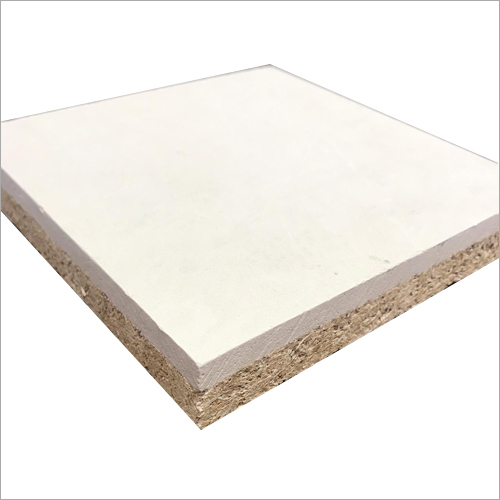

The Gypsum Finish Wood Wool Board is a natural panel, incorporated with long as well as strong wood fibers. This natural alternative to plasterboard is applicable for many buildings and ensures a popular lime carrier. This board provides a superior background for lime plasters and obviate the need of thermal bridges used in beams and pillars. Gypsum Finish Wood Wool Board provides an acoustic insulation of flat & sloping roofs, walls, fire resistant coverings etc.  An ideal board for lime plasters. This is provided with an open structure and is suited for several different applications so as to attain many sustainable benefits. It eliminates the waste disposal problem and is entirely resistant to insects & fungus.

Technical Specification :


1mm width Pine wood


85 Grade Magnesite 200 mesh

Std. Size

1220 x 610mm; 600 x 600mm

Other Size

1200 x 600mm; 915 x 610mm;

Thickness in mm

10, 15, 20, 25, 40, 50, 75, 100, 150

Density in Kg /cuM

400, 450, 600, 800


Square, Beval

Conforms To

Conform to

IS 3308; EN 13168, BS:1105, DIN:1101


Sound Test

ISO : 354-1985 & ASTM 423-90a

Ignitable Test

BS : 476

Weather Test

Cycle (B) IS: 9307

Thermal Test

BS : 874-1965

Installation Specifications for Ceiling

Can be installed on GI metal / Wooden / MS frame of 50 x 50mm making a grid of 610 x 610mm c/c. The frame is to be made in proper line after leveling. The panels will be backed with 50mm. Polyfibre Acoustic Wadding 1000 GSM inserted inside the grid of 610 x 610mm.
